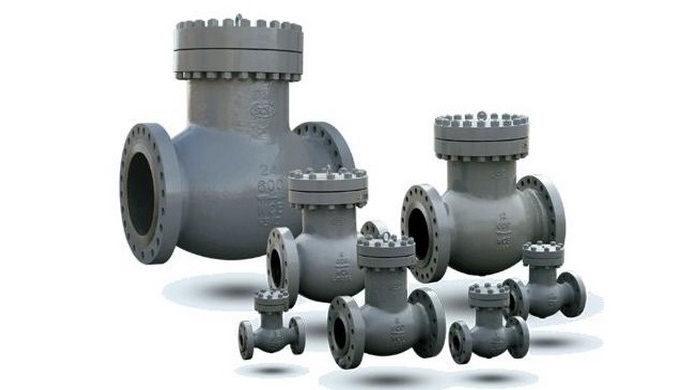

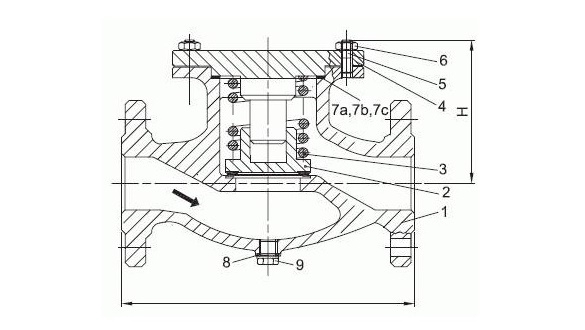

Van một chiều Piston

Van một chiều Piston



DESIGN AND MANUFACTURING STANDARDS

Basic Design

API 6D

Shell Wall Thickness

API 6D

Face to Face Dimension

As Stated

Flange End Dimension

ANSI/ASME B16.5 (2” to 24”) MSS SP-44 (26” & up)

Butt-Weld End Dimension

ANSI/ASME B16.25

Material Grade

Carbon Steel: A216-WCB

Carbon Steel Alloy High-Temp: A217-WC6/ WC9/ WC5

Carbon Steel Alloy Low-Temp: A352-LCB/LCC/LC2/LC3

Stainless Steel: CF8M/CF8C/CF8/CF3/CF3M

Size

2'' - 36''

Class

150Lbs - 300Lbs  - 600Lbs - 900Lbs - 1500Lbs - 2500Lbs

Inspection & Testing

API 6D
